Quick Product Overview

Quick™ (Quick Universal Industrial Control Kard) is based on chipKIT(tm) open source platform. The Quick240 is designed for industrial automation systems where traditionally a ladder logic PLC might have been used. Since the Quick240 is an open platform for industrial automation it effectively extends the traditional life of a similarly proprietary. This is achieved in several ways.

  • Easier maintenance after the traditional “end of life” of an equivalent proprietary device since the tools are open.
  • Devices can utilize new technology developed for the open source community that maybe slow or never come to a proprietary tool.

The initial adapters of the Quick240 will be chipKIT(tm) and Arduino(tm) users that need to implement industrial automation solutions. Quick™ allows for a polished package that presents a high end image rather than something that looks like a hobby or prototype. Quick™ is based on open source technologies so tools obsolescent is mitigated and entry cost is lower.

The result is an Open Source PLC based on chipKIT technology.

Under the Hood

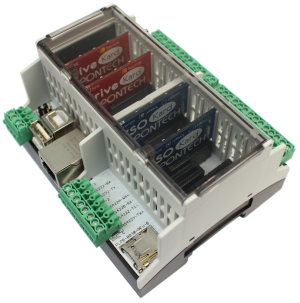

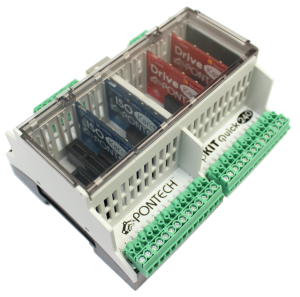

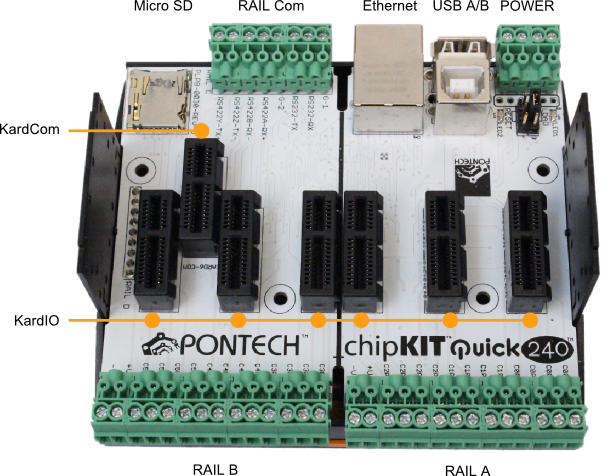

The Quick system consists of a motherboard (Quick240) that has a Microchip (PIC32MX795F512L) microcontroller, high voltage (24V In) DC-DC converter that outputs 5V and a 3.3V linear regulator and seven Kard™ slots. All of this is housed in a sleek DIN rail mountable plastic housing.

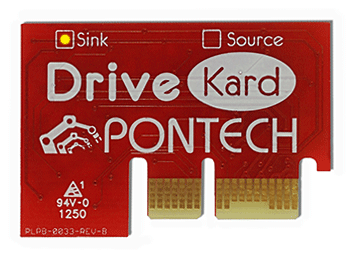

Kard slots allow insertion of low cost signal conditioning circuits for interfacing the Microchip device to the industrial world. The board Drive Kard shown below will turn a single slot into a drive circuit for four relays or solenoid.

Quick240 Videos

Quick240 User Manual

Features

Connections Power Supply, Jumpers and Pinout

Development Tools Setting up MPIDE

Bootloader Upgrading or replacing the bootloader

Schematics and BOM's

Asked Questions and answers

Example Sketches

UpTick™ and UpTick Tickets™ for Com and IO

ImagePart NumberDescriptionSchematicLayoutAvailabilityOrder
xUpTick240UpTick240 Mother Board with DIN Rail HousingOpenClosedProductionBuy
xUpTick241UpTick241 Mother Board (bare board only)OpenClosedProductionBuy
xUTI-KTA100Kard Ticket Adapter for TicketIOClosedClosedProductionBuy
xUTI-FDP100Drive Ticket (Source / P-Channel) for TicketIOClosedClosedProductionBuy
xUTI-FDN100Drive Ticket (Sink / N-Channel) for TicketIOClosedClosedProductionBuy
xUTI-FDN101Super Sink Drive Ticket (Sink / N-Channel) for TicketIOClosedClosedProductionBuy
xUTI-RGBW100RGB+W LED Drive Ticket (Sink / N-Channel) for TicketIOClosedClosedProductionBuy
xUTI-ICC100ISO Ticket (Common Cathode Isolated Input) for TicketIOClosedClosedProductionBuy
xUTI-ICA100ISO Ticket (Common Anode Isolated Input) for TicketIO SlotClosedClosedProductionBuy
xUTI-PHX100Light Curtain ISO Ticket for TicketIO SlotClosedClosedProductionBuy
xUTI-BO100BO100 Break-Out Ticket (User Selectable Passive Matrix Per Pin) for TicketIO OpenOpenProductionBuy
xUTI-BO101BO100 Break-Out Ticket (Configured for Optical Sensor Bias) for TicketIO SlotOpenOpenProductionBuy
xUTC-SD100Serial Driver (2-RS-485, 1xRS-232) Ticket for TicketComOpenClosedProductionBuy
xUTC-SD101Serial Driver (3-RS-485) Ticket for TicketComOpenClosedProductionBuy
xUTI-DAC104Four Channel 0-10VDC SPI DAC Ticket for TicketIO SlotClosedClosedPre-Production
xUTI-DAC101One Channel 0-10VDC SPI DAC Ticket for TicketIO SlotClosedClosedPre-Production
xUTI-BODAC100The BODAC Ticket - Three Break Out Connections and one 10-bit 0-10VDC SPI DAC, for TicketIO Slot Rail0 DAC, Rail1 NC, Rail2 NC, Rail3 NCClosedClosedPre-Production
xUTI-BODAC101The BODAC Ticket - Three Break Out Connections and one 10-bit 0-10VDC SPI DAC, for TicketIO Slot (Rail0 DAC, Rail1 5v in analog, Rail2 10v in analog, Rail3 NC)ClosedClosedPre-Production

Ticket ID

Quick™ and Quick Kards™ for Com and IO

Quick KardIO Pin Mapping

ImagePart NumberDescriptionSchematicLayoutAvailabilityOrder
Quick240Quick240 Mother Board with DIN Rail HousingOpenClosedProductionBuy
Quick242Quick242 Mother Board with DIN Rail Housing (USB Self Powered, external power must be provided). This product is discontinued. The current Quick-240 now has a jumper to disconnect USB power from powering the board.OpenClosedProductionBuy
Quick241Quick240 Mother Board (bare board only)OpenClosedProductionBuy

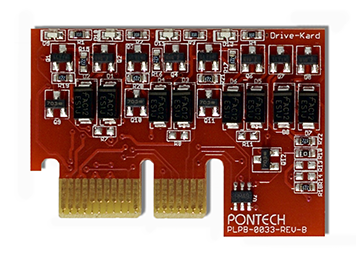

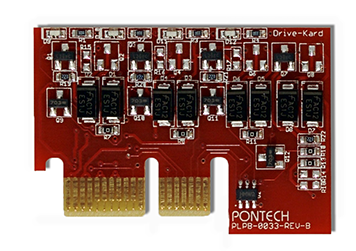

QKI-FDP100Drive Kard (Source / P-Channel) for KardIO SlotClosedClosedProductionBuy
QKI-FDN100Drive Kard (Sink / N-Channel) for KardIO SlotClosedClosedProductionBuy
TBDQKI-FDN101Drive Kard (Super Sink / N-Channel) for KardIO SlotClosedClosedProductionBuy

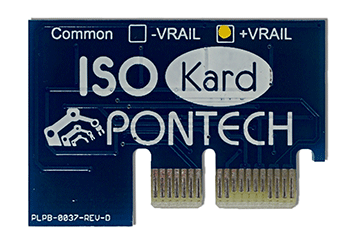

QKI-ICC100ISO Kard (Common Cathode Isolated Input) for KardIO SlotClosedClosedProductionBuy
QKI-ICA100ISO Kard (Common Anode Isolated Input) for KardIO SlotClosedClosedProductionBuy

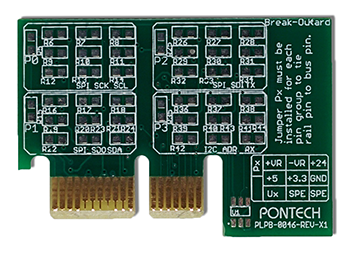

QKI-BO100BO100 Break-Out Kard (User Selectable Passive Matrix Per Pin) for KardIO SlotOpenOpenProductionBuy
QKI-BO101BO100 Break-Out Kard (Configured for Optical Sensor Bias PLPA-0132) for KardIO SlotOpenOpenProductionBuy
QKI-STP200Big-Easy Kard (One Channel micro-step driver 2A per phase) for KardIO SlotOpenClosedPrototype

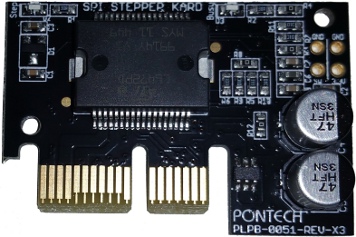

nonenoneQKI-SPS100SPI Stepper Kard (One Channel micro-step driver 2A per phase) for KardIO SlotOpenClosedProduction
xQKI-BAB100Bay Area Bridge Kard, (Dual H-Bridge Driver, 2.5A per H-BridgeClosedClosedDownload

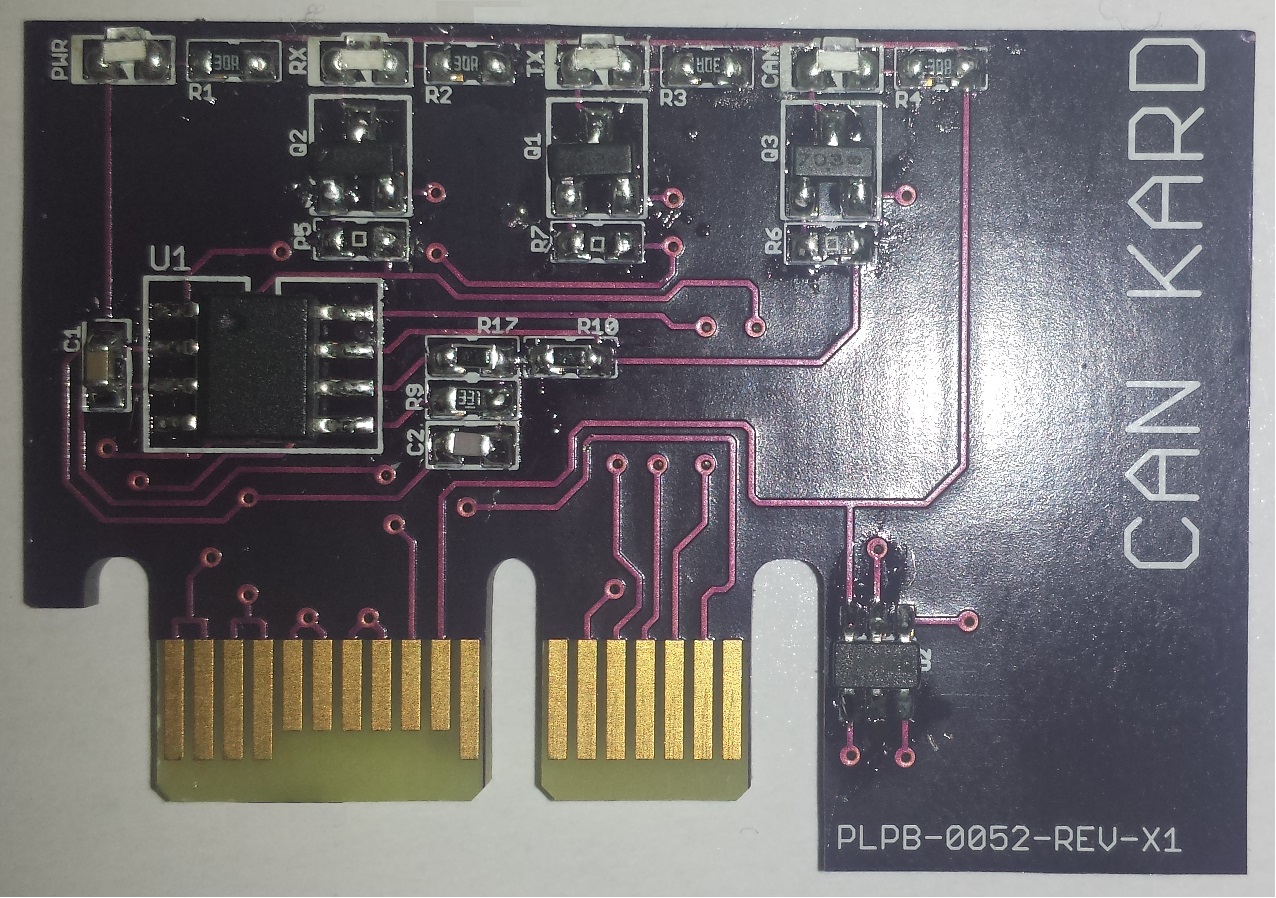

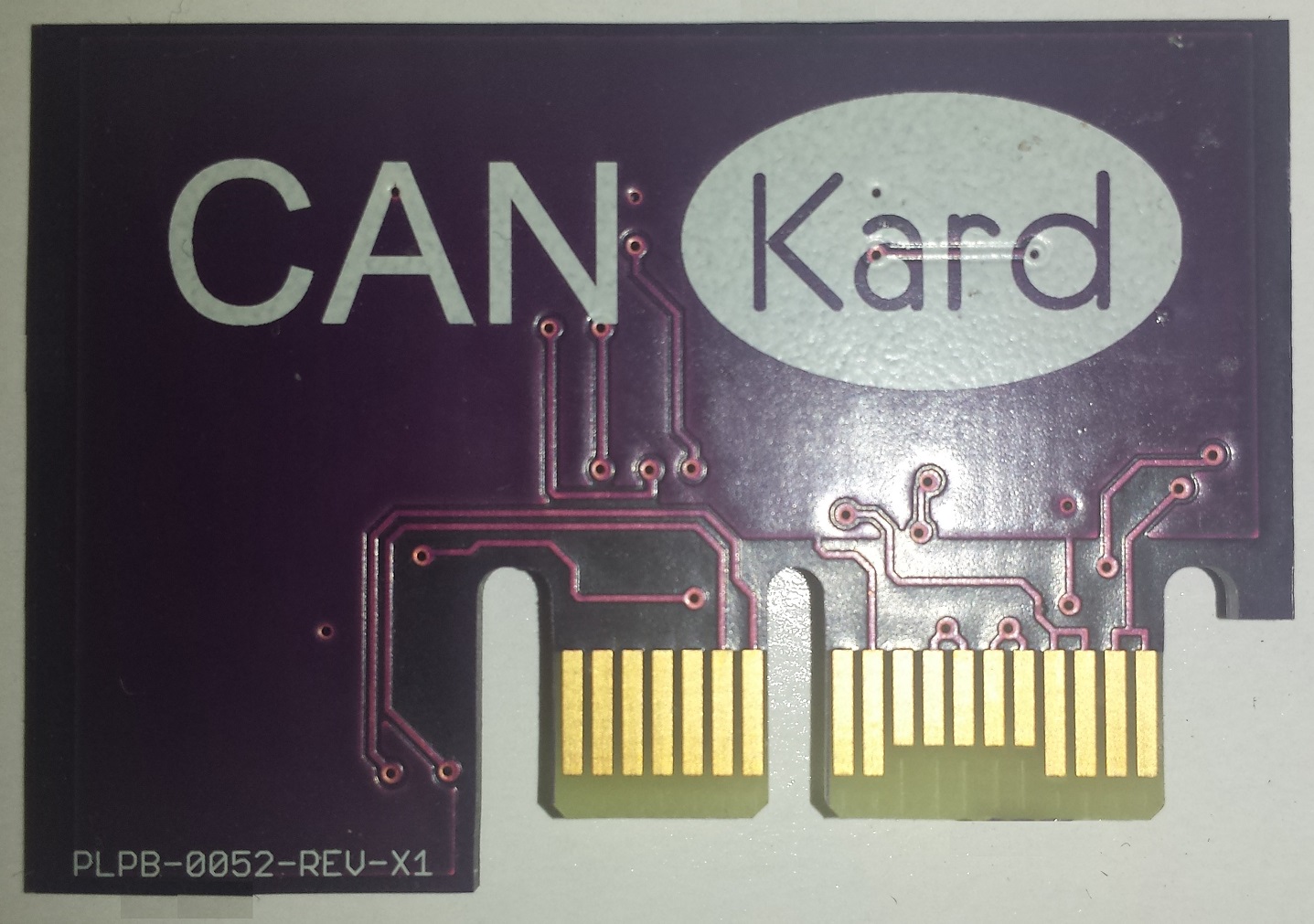

QKC-CAN100Can Driver Kard for KardIO Slot 5 onlyOpenClosedPrototype

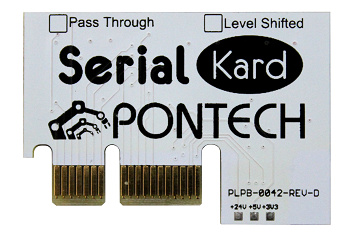

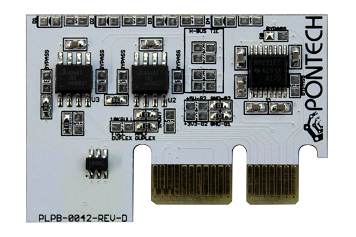

QKC-SD100Serial Driver Kard for KardCom SlotOpenClosedProductionBuy
xQKI-TC1004 Input K Type Thermocouple KardClosedClosedPre-Production
xQKI-DAC104Four Channel 0-10VDC SPI DAC Kard for KardIO SlotClosedClosedPre-Production
xQKI-DAC101One Channel 0-10VDC SPI DAC Kard for KardIO SlotClosedClosedPre-Production
xQKI-BODAC100The BODAC Kard - Three Break Out Connections and one 10-bit 0-10VDC SPI DAC, for KardIO Slot Rail0 DAC, Rail1 NC, Rail2 NC, Rail3 NCClosedClosedPre-Production
xQKI-BODAC101The BODAC Kard - Three Break Out Connections and one 10-bit 0-10VDC SPI DAC, for KardIO Slot (Rail0 DAC, Rail1 5v in analog, Rail2 10v in analog, Rail3 NC)ClosedClosedPre-Production
xQKI-PT100Pass Through Kard for KardIO SlotOpenOpenN/A
xQKI-BLANKKard Blanche (Kard Template)OpenOpenDownload

Kard ID
